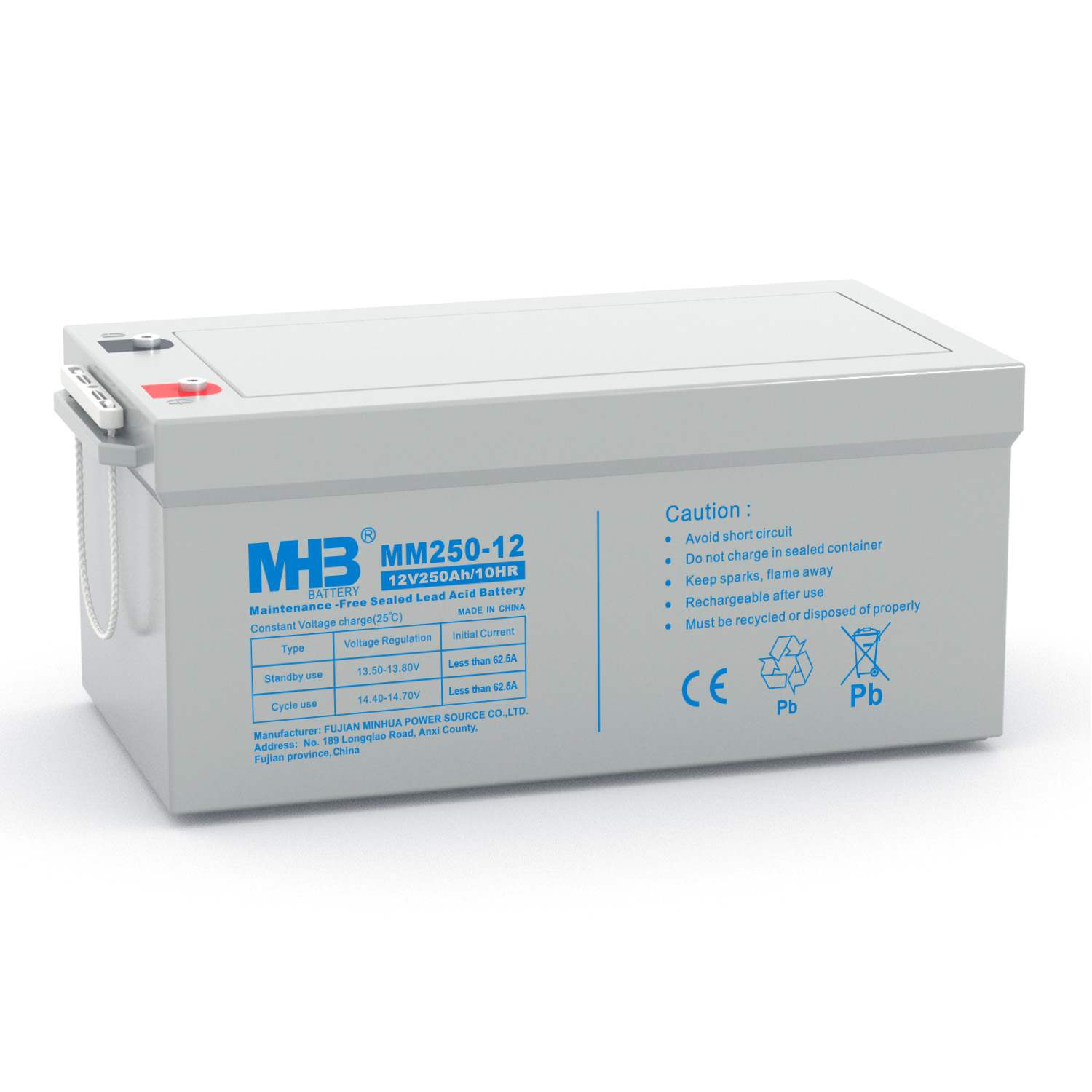

High Capacity 12V 250Ah Security UPS Battery 6-GFM-250T

MHB 12V 250Ah lead-acid battery for UPS, telecommunications, EPS, and emergency backup. Reliable, durable, and ideal for industrial and off-grid applications, ensuring stable power in critical situations.

product details

Product Tags

Download PDF

Features

High Capacity & Reliability: Ensures stable power for critical applications with 250Ah capacity.
Long Service Life: Built for durability with enhanced performance over extended periods.
Wide Application: Ideal for UPS, EPS, telecommunications, and emergency backup systems.
Maintenance-Friendly Design: Minimal upkeep required for uninterrupted operation.
Deep Cycle Capability: Supports frequent charge/discharge cycles with consistent performance.
Safety Assurance: Features built-in protection against overcharging, over-discharging, and short circuits.
Temperature Tolerance: Performs well in both high and low-temperature environments.
Environmentally Compliant: Lead-acid technology that meets industry safety and environmental standards.

Construction

10.Electrolyte ....... Sulfuric acid

1.Component ......Raw material

2.Positive ........Lead dioxide

3.Negative ........Lead

4.Container ........ABS

5.Cover ........ABS

6.Sealant ........Epoxy

7.Safety valve .... Rubber

8.Terminal ........Copper/Pb

9.Separator ........Fiber glass

10.Electrolyte ....... Sulfuric acid

12v-250ah-ups-battery-1

12v-250ah-ups-battery-2

Specification

Battery Model	MM 250-12 12V250 AH
Designed Floating Life	Up to 8 Years
Capacity (25℃)	20HR(13.090A,10.8V)	10HR(25.000A,10.8V)	5HR(43.830A,10.5V)	1HR(135.510A,10.5V)
	261.80 AH	250.00AH	219.15 AH	135.51AH
Dimensions	Length	Width	Height	Total Height
	520 mm	269 mm	220 mm	224 mm
Approx. Weight	69.00KG ±3%
Internal Resistance	Full charged at 25℃:≤3.80 mQ
Self Discharge	2% of capacity declined per month at (25℃)
Capacity Affected by Temp.(20HR)	40℃	25℃	0℃	-15℃
	102%	100%	85%	65%
Charge Voltage(25oC)	Cycle use		Float use
	14.4-14.6V(-30mV/℃), max.Current: 75.0 A		13.5-13.8V(-20mV/℃)

Advantages

- 1.High Reliability: Provides constant power to important systems and helps reduce the downtime in case of power failure.

  2.Cost–Effective Solution: Cheap, relative to the other energy storage solutions and has low running costs.

  3.Long Cycle Life: Endures deep discharge cycling thus enhancing performance longevity.

  4.Versatile Applications: Perfect for UPS, telecommunication, electric power systems and as emergency backups.

  5.Low Maintenance: Low maintenance means that time and operational efforts are minimized.

  6.High Safety Standards: Contains protection against overcharging, over discharging and short circuiting.

  7.Temperature Resilience: Can be used reliably under a variety of ambient conditions.

  8.Recyclable and Sustainable: Lead-acid batteries can be easily recycled hence ensuring low negative impact on the environment.

Application

Telecommunications: Provides reliable backup power for base stations, data centers, and network equipment.
Uninterruptible Power Supply (UPS): Ensures continuous operation of critical systems during power outages.
Electric Power Systems (EPS): Stabilizes power grids and supports energy storage for peak load management.
Emergency Backup Power: Powers essential equipment like medical devices, security systems, and lighting during outages.
Renewable Energy Storage: Stores energy from solar or wind systems for later use.
Industrial Equipment: Powers forklifts, automated systems, and other industrial machinery.
Railway and Transportation Systems: Ensures smooth operation of signaling systems and emergency lighting.
Off-Grid Applications: Supports remote facilities with limited access to the main power grid.
