MHB DL 2Ah Durable Power Battery Plates Manufacturers

Battery plates are an important part of a lead-acid battery and are the site of electrochemical reactions that store and release energy. These plates are typically made from lead-based alloys and have a large surface area to maximize electrochemical reactions and improve the battery’s performance. The positive and negative plates in the battery are arranged alternately, separated by insulating materials, and immersed in the electrolyte. This arrangement efficiently converts chemical energy into electrical energy, making the panels vital for a variety of applications including automotive, industrial and renewable energy storage.

product details

Product Tags

Download PDF

Features

Longer Service Life: Optimized design for extended operational lifespan.
Stable Power Output: Delivers consistent voltage and capacity over time.
Maintenance-Free: Sealed construction eliminates the need for regular upkeep.
Durable Design: Resistant to vibrations and extreme temperatures, ensuring reliable performance.
Eco-Friendly: Constructed with recyclable materials to reduce environmental impact.
Certified Quality: Complies with CE, UL, ISO, and ROHS standards for safety and reliability.
Customizable for B2B: Available in bulk with flexible production to meet specific client needs.

Application

Telecommunication Systems
Energy Storage Systems
UPS and Backup Power
Industrial Control Equipment
Renewable Energy Storage (Solar and Wind)
Emergency Lighting Systems
Power Plants and Substations

Construction

1.Component ......Raw material

2.Positive ........Lead dioxide

3.Negative ........Lead

4.Container ........ABS

5.Cover ........ABS

6.Sealant ........Epoxy

7.Safety valve .... Rubber

8.Terminal ........Copper

9.Separator ........Fiber glass

10.Electrolyte ....... Sulfuric acid

Specification

Battery Model	ML150-2 2V150AH
Designed Floating Life	Up to 15 Years
Capacity (25℃)	20HR(7.680A,1.80V)	10HR(15.000A,1.80V)	5HR(24.990A,1.80V)	1HR(78.990A,1.80V)
	153.60AH	150.00AH	124.95AH	78.99AH

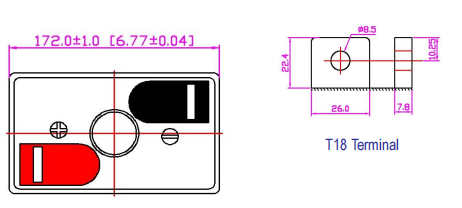

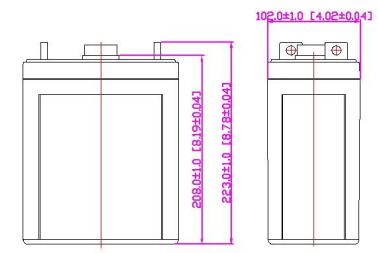

Dimensions	Length	Width	Height	Total Height
	172 mm	102 mm	208 mm	223mm
Approx. Weight	8.60 KG±3%
Internal Resistance	Full charged at 25℃:≤2.00mQ
Self Discharge	2% of capacity declined per month at (25℃)
Capacity Affected by Temp.(20HR)	40℃	25℃	0℃	-15℃
	102%	100%	85%	65%
Charge Voltage(25℃)	Cycle use		Float use
	2.40-2.50V(-5mV/℃),max.Current:37.50A		2.25-2.30V(-3.0mV/°℃)

Production Advantages

Extended Service Life: Engineered for longevity, reducing replacement frequency and operational costs.
Consistent Performance: Provides stable power output for critical applications.
Maintenance-Free Design: Sealed structure ensures hassle-free usage with no electrolyte refills required.
Durability: Built to withstand vibrations, extreme temperatures, and demanding environments.
High Efficiency: Optimized for energy storage and maximum discharge efficiency.
Certified Quality: Meets international safety and performance standards, including CE, UL, ROHS, and ISO.
Eco-Friendly Construction: Manufactured with recyclable materials to minimize environmental impact.
Versatile Applications: Suitable for a wide range of industries, including telecommunications, energy storage, and UPS systems.
Scalable Solutions: Designed for bulk and wholesale orders, meeting the needs of B2B clients globally.
Trusted Supplier: Backed by years of expertise in delivering high-quality batteries to industrial and commercial clients.
