MHB MR100-12 Front Terminal Battery For Automatic Alarm System - 12V100AH

MHB MR100-12 Front Terminal Battery – A high-performance 12V 100Ah maintenance-free battery designed for automatic alarm systems, data centers, and UPS applications. Featuring superior corrosion resistance, excellent charge acceptance, and a space-saving front terminal design, it ensures reliable power and easy installation. Perfect for professional and industrial use.

product details

Product Tags

Download PDF

Features

High Corrosion Resistance: Special high-tin alloy grid enhances durability and lifespan.
Superior Performance: Unique lead paste formula ensures excellent charge acceptance and high-rate discharge.
Space-Saving Design: Front terminal configuration optimizes installation and maintenance.
Long Service Life: Designed for 10-12 years of reliable performance under float charge conditions.
Maintenance-Free: Fully sealed design eliminates the need for frequent maintenance.
Certified Quality: CE, UL, and ISO certified, meeting global safety and quality standards.
Wide Temperature Range: Operates efficiently between -15°C and 50°C.
Enhanced Safety: Equipped with explosion-proof valves for secure operation.

Construction

1.Component.............material

2.Positive plate...Lead dioxide

3.Negative plate..Spongy lead

4.Battery case......

5.ABS Engineering plastics

6.Sealant........ Epoxy resin

7.Safety valve...... Fluorinated rubber

8.Wire terminal..... Silver-plated copper

9.Isolation plate..... Ultrafine glass fiber

10.Electrolyte........ Analytical pure sulfuric

Specification

Battery model	MR100-12B(12V100AH)
Battery life designed	more than 10 years in th e float charging mode
Capacity designed (25℃)	20HR(5.460A,10.8V)	10HR(10.000A,10.8V)	5HR(19.660A,10.5V)	1HR(65.820A,10.5V)
	109.20AH	100.00AH	98.30AH	65.82AH

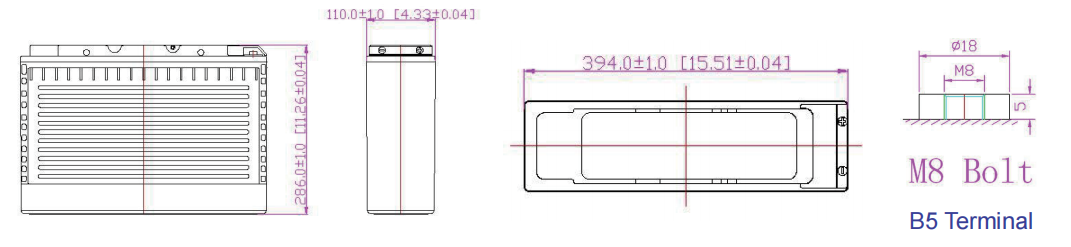

Battery size	Length	Width	Height	Total Height
	394mm	110mm	286mm	286mm
Battery weight	33.00 KG±3%
Nominal internal resistance	100% charging is completed at 25°C environment: ≤3.30mQ
Self-discharge rate	2% self-discharge rate per month, at 25℃ environment
Capacity at different Temperatures(20HR)	40°℃	25℃	0°C	-15℃
	102%	100%	85%	65%
Charging voltage (25℃)	Circulation mode		Floating charge mode
	14.4-15.0V(-30mV/°C), Max Charge Current:25.00A		13.5-13.8V (-20mV/C)

Advantages

Reliable Power Supply:
Delivers stable and consistent energy for critical systems like alarms, UPS, and telecom.
Space-Efficient Design:
Front terminal configuration saves installation space and simplifies cable management.
Long Lifespan:
Designed for 10-12 years under float charge conditions, reducing replacement frequency.
Low Maintenance:
Maintenance-free sealed design ensures hassle-free operation.
High Durability:
Resistant to corrosion and equipped to handle high-rate discharge for demanding applications.
Certified and Safe:
Fully compliant with CE, UL, and ISO standards, ensuring quality and safety.
Versatile Usage:
Ideal for a wide range of applications, including data centers, emergency systems, and renewable energy storage.
