Tech Brief: High-Rate VRLA Performance for AI-Driven Data Center Loads

1. The Shifting Load Profile of AI Infrastructure​​​​​​

For years, Ups Systems were sized for traditional servers with relatively flat power draws. Today, an AI rack packed with GPUs (like H100s or high-density ASIC clusters) presents a different challenge:Dynamic Step Loads.

When the primary grid fluctuates or fails, the battery string doesn't just "take over"—it hit the ground running with a massive current draw. If the internal resistance (IR) of your battery cells is even slightly too high, the resulting Voltage Drop (V-drop) can trigger a low-voltage disconnect (LVD) on the inverter, causing the very crash the UPS was supposed to prevent.

2. Engineering the Battery for the "First 5 Minutes"

In a modern IDC (Internet Data Center), the generator usually kicks in within 30 to 60 seconds. This means the battery's performance is measured in minutes, not hours.

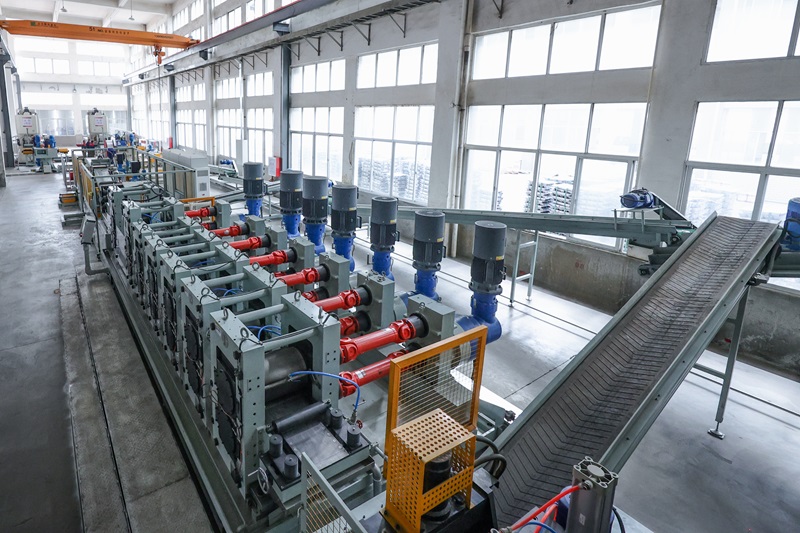

At MHB’s factory, we’ve optimized our High-Rate (HR) Series specifically for this short-duration, high-intensity discharge:

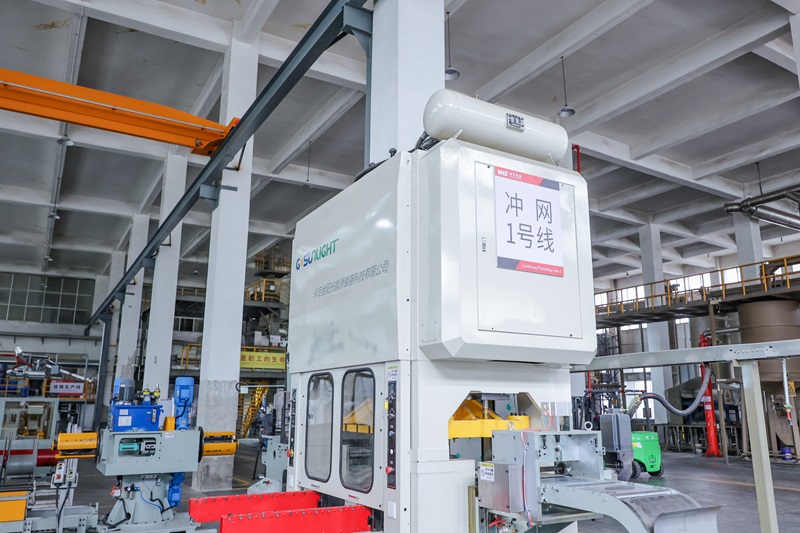

• Grid Alloy & Density: We use a proprietary lead-calcium-tin alloy. The increased tin content improves the mechanical strength of the grid and resists "creep" during high-thermal events.

• Plate Surface Area: By using thinner, more numerous plates compared to standard standby batteries, we increase the electrochemical reaction surface area. This is the difference between a "sprinter" (HR) and a "marathon runner" (Standard AGM).

• Internal Busbars (Straps): We’ve thickened the lead straps connecting the cells to reduce ohmic losses. In high-current discharge (e.g., 3C or 4C rates), standard straps can overheat; ours are designed to keep the temperature delta within safe limits.

3. The "Consistency" Problem in Large UPS Strings

As an exporter, we often hear from buyers whose battery strings failed prematurely. 90% of the time, the culprit isn't the chemistry—it's Impedance Mismatch.

In a 480V UPS string, one "weak" 12V block with higher internal resistance will overcharge and dry out, eventually killing the entire string.

• MHB Factory Solution: We implement a 100% OCV (Open Circuit Voltage) and IR (Internal Resistance) matching process before packing. We don't just ship 40 batteries; we ship a matched set. This significantly reduces the maintenance burden for your onsite engineers.

•

4. Lead-Acid vs. LiFePO4: A Pragmatic B2B Comparison

Despite the hype around Lithium, many of our global B2B partners are sticking with Lead-Acid for AI infrastructure for three practical reasons:

1. Thermal Stability: Data centers are becoming incredibly hot. Lead-acid is much more forgiving of ambient temperature fluctuations than lithium, which requires expensive, energy-consuming cooling and complex BMS (Battery Management Systems).

2. Fire Suppression: Many older DC facilities are not rated for the specialized fire suppression systems required by lithium-ion (e.g., NFPA 855 standards). Lead-acid remains the "safe bet" for brownfield upgrades.

3. End-of-Life Value: Lead is a commodity with a mature global recycling supply chain. For a trade buyer, the residual value of a spent lead-acid battery is a known asset, whereas lithium disposal remains a cost liability.

5. Maintenance Insights for IDC Operators

If you are managing an AI data center, pay attention to Float Current Monitoring. An increase in float current is the first sign of "Thermal Runaway" in high-density racks. We recommend a semi-annual impedance test to catch aging cells before they impact the rack’s uptime.
